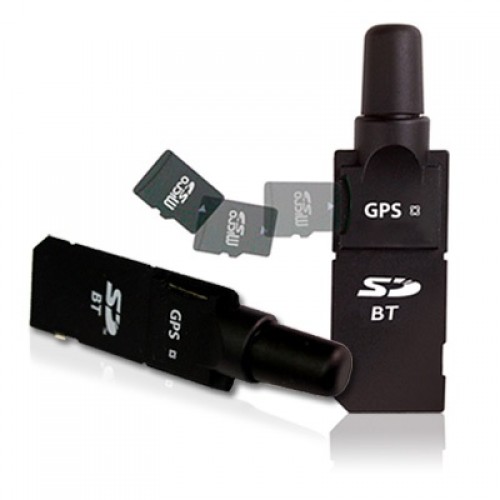

SD Bluetooth GPS Receiver
.SD Bluetooth GPS Receiver 2 in 1 GPS + Micro SD Memory Slot
- SiRF Star-III High Performance and Low power chipset
- Communication with Host Platform via Bluetooth Serial Profile
- Geohelix GPS antenna
- Support NMEA0183 data protocol
- LED show the status of GPS Auto power-off, if Bluetooth is not connected to any devices within
- Bluetooth operation range: 6-10 m
Bluetooth Specification
- Bluetooth V2.0 Compliant
- Supply Voltage: 2.8V~3.7V
- Receiver Sensitivity: -85dBm
- Transmit Power: Class 2
- Transmitting Range: 10m
- Power Consumption: 45mA
System Specification
- Type: Geohelix GPS antenna
- Frequency: L1,1575.42 +/-1.023MHz
- Channels: 12, up to 20
- Hot start: 1 sec., average (with ephemeris and almanac valid)
- Warm start: 35sec., average (with almanac but not ephemeris)
- Cold start: 40sec., average (neither almanac nor ephemeris)
- Reacquisition: 0.1 sec. average (interruption recovery time)
- Tracking Sensitivity: -159dBm
- Position Horizontal: 10m 2D RMS
- Time: 1 micro-second synchronized to GPS time
- Velocity: 0.1m/sec 95%
- Datum: WGS-84
- GPS Output Data: NMEA 0183 protocol, and supports command: GGA,GSA, GSV, RMC
- Acceleration Limit: 60,000 feet, max.
- Velocity Limit: 515 meters/sec. max.
- Voltage: 2.8~3.7VDC input
- Dimension: 55mm x 24mm x 2.1mm (no Antenna)
- Weight: 15g
- Humidity: up to 95% non-condensing
- OS Support: Windows Mobile, Windows XP, Palm, Linux, Symbian, Mac, Rim
